Autel Maxisys Ultra Diagnostic Tablet Plus EV Diagnostics Upgrade Kit upgrade to MaxiSys Ultra EV Ship from US

: In stock

: Auto Diagnostic Tool

: Autel

$4,299.00 $4,399.00

This pavakge Includes Autel Maxisys Ultra and  EV Diagnostics Upgrade Kit How to active EV box on MaxiSys Ultra: To imput EV box SN on tablets portal directly to upgrade. Autel Maxisys Ultra Highlights: 1.The Top Automotive Diagnostic Scanner in 2023Autel MaxiSys Ultra...
$4,299.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

This pavakge Includes Autel Maxisys Ultra and  EV Diagnostics Upgrade Kit

How to active EV box on MaxiSys Ultra:

To imput EV box SN on tablets portal directly to upgrade.

Autel Maxisys Ultra Highlights:

1.The Top Automotive Diagnostic Scanner in 2023
Autel MaxiSys Ultra is updated from Autel MK908P/MS908P/Elite/MS909/MS919. Combined with new 5-in-1 VCMI, 3 new diagnostic protocols, 36+ service services, 10+ high-end functions, and top-level hardware configuration, 99.99% vehicle coverage, this MaxiSys Ultra scanner is the best investment for large auto workshops.

2.One-stop Diagnostics & 36+ Service Functions
Autel MaxiSys Ultra with one-stop Diagnostics, Also, it has 36+ service functions to meet all the needs, helping your win more business.

3.Support both ECU Programming and Coding
MaxiSys Ultra can program & code more vehicles to re-flash the vehicle control modules, replace ECUs, update software, etc. Meantime, it supports online programming & coding for BMW (F & G chassis) and online programming for new chassis of Benz. With 10+ core functions (Active Test/Guided functions/Personalization/Modifications/etc.) in one, Autel Ultra offers techs maximum convenience and swift diagnostics.

4. With 5-in-1 VCMI, which worth more than $2000
The advanced 5-in-1 Autel MaxiFlash VCMI combines the functions of VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN Bus Check, helping MaxiSys Ultra realize multiple functions of diagnostics, detection, signal simulation, etc. Meantime, it’s a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface, capable of connecting with OEM diagnostic tools to diagnose and program more passenger and commercial vehicles, such as Volvo, VW, Benz, etc.

5. Cover 10000+ cars and,99% models on the Market
In addition to the D-PDU/SAE J2534/RP1210 diagnostic protocols, this OBD2  diagnostic tool MaxiSys Ultra also supports the DoIP and CAN FD protocols for more new vehicle models, covering 99% of vehicles on the market. Designed with a 13-inch touchscreen, Android 7.0 OS, Samsung octa-core processor (2.3GHz Quad + 1.7GHz Quad), 256GB built-in memory, Ultra works like an AI diagnostic expert.

6.Quality and After-Sales Guarantee
The Autel MaxiSys Ultra scanner is 100% Original Autel and we ship it from Ship from US Local Distributor,fast and no tax and it comes with 12-month warranty, 1-year free update(after 1 year free update,which cost US$1,115.00 per year,if do not update it it will not affect the use of previous functions), lifetime professional tech support.

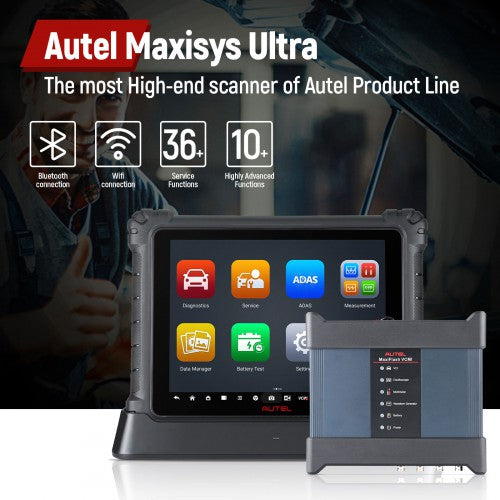

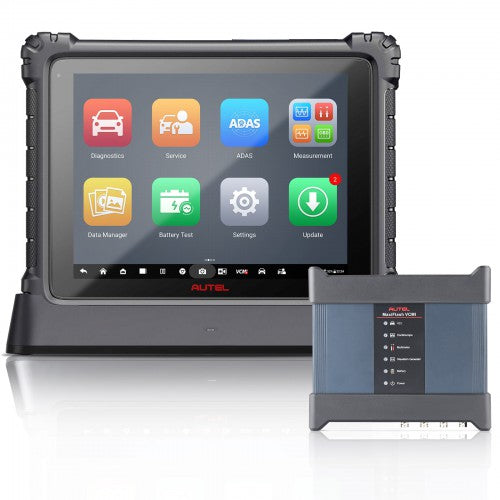

What is Autel MaxiSys Ultra?

The MaxiSys Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 12.9-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Diagnostics options The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan. As the top-end diagnostic scanner in 2022, Autel MaxiSys Ultra is equipped with all funtions that you may need to be a professional mechanic:

Updated version of MK908P/MS908P/Elite/MS909/MS919; All-in-one comprehensive scanner for large repair workshops;
D-PDU/SAE J2534/RP1210/DoIP/CAN FD protocols are supported; Wider vehicle coverage for 99.99% makes in the market;
5-in-1 VCMI with functions of VCI, oscilloscope, waveform generator, multimeter, and CAN BUS tester;
Advanced Programming and Coding, ECU upgrading & downgrading, ECU module matching & replacement, etc.
36+ service functions to fix all car-related problems, no need to turn to other scan tool or gurus;
OE-level Topology Module Tree, helping you veiwing the vehicle's crux much more intuitively;
Split-screen multi-application navigation with super fast running speed, greatly improving your work efficiency;
10+ highly advanced functions: Active Test/Guided Functions/Personalization/Modification/ etc.;

Supported Language: English Only

Top-level Configurations, OE-level Topology Module Tree
Specifications:
1)Processor: 2.3GHz Quad + 1.7GHz Quad; 2)Battery: 18000mAh for 10hrs Continuous Use

3)Memory: 256GB SSD/4GB RAM; 4)OBD Interface: CAN, EOBD, OBD, OBDII

5)Protocols: KPW, CAN, CAN-FD, DoIP, etc,; 6)Screen: 12.9 Inch Touchscreen

7)Camera: 16MP REAR/5MP FRONT; 8)Connectivity: Wifi Bluetooth, MaxiFlash VCMI

9)Coverage: for 99.999% Car Makes like Ford Toyota Nissan GM BMW Benz,etc.

10)Supported System: All Systems like ABS, DPF, EPB, SAS, SRS, TPMS, IMMO

11)Accessories: Adapter Cable, Carrying Case, USB Cable, User Guide, MaxiFlash VCMI

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.

  • Systematically show the communication structure between the modules;
  • Directly display the fault code and enter the system execution function;
  • Clearly view the color coded module status tree by zooming in and out;
  • Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

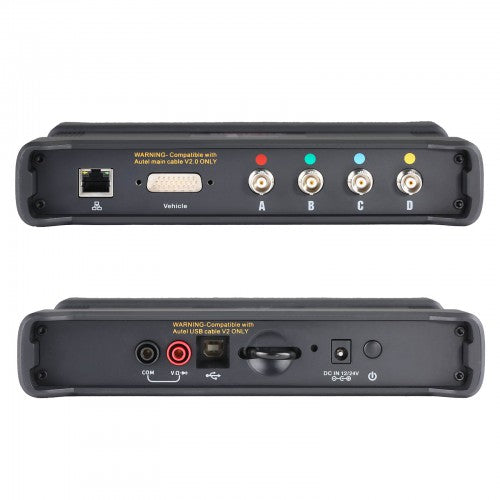

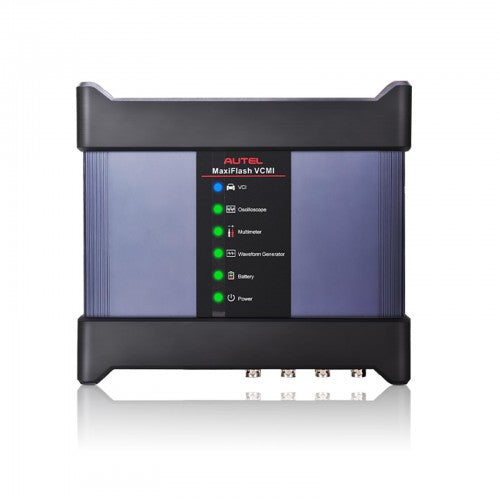

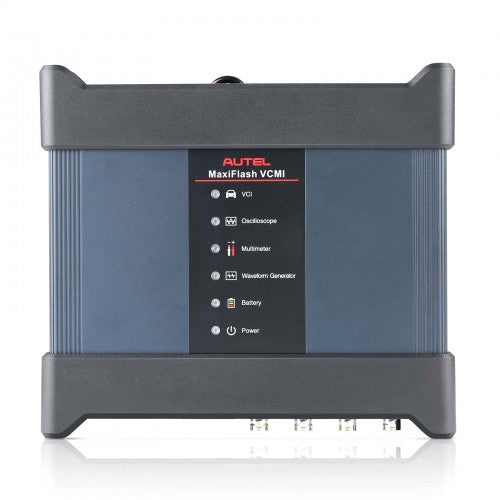

    5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently

    • 5-in-1: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.
    • More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/SAE J2534/RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.
    Autel Maxisys Ultra 5-in-1 vcmi

    Advanced ECU Programming & Coding

    The need to perform programming & coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:

    A. Coding--also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

    B. Programming --downloads the latest version of software from the online server database through Internet access (this procedure is done automatically when the tablet is connected to the Internet, so there is no need to check for software updates yourself), and reprograms the newest version into the vehicle's ECU.

    Autel top scanner MaxiSys Ultra with VCMI can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, Auto scan tool Maxisys Ultra provides diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

    • Online ECU programming & coding without any special connectors for BMW (F & G chassis);
    • Online ECU programming for new chassis of Benz (204, 212, 207, 463, etc.); Online SCN for Benz (222, 212, 204, 205, etc.);
    • Online ECU coding for Volkswagen, Audi, Porsche, Renault, etc.
    • ECU programming & coding for GM, Ford, Chrysler, Volvo, Land Rover, Jaguar, etc.
    • The VCMI module also supports various common vehicle buses protocols, for instance: KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN.
    autel maxisys ultra ecu programming & coding

    36+ Maintenance Functions Greatly Improve Work Efficiency

    • 26 Commonly Used Reset Functions for Fast Maintenance or Repairs:

    Oil Reset, EPB, BMS, ABS Bleed, TPMS, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlight Matching, A/F Setting, WIN DR Roof, Odometer, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption.

    • 10+ Advanced Functions for Different Vehicle Models:

    Neutral Gear Position Learning, Torque Sensor Adjustment, Signal Check, Yaw Rate Sensor (YRS) Learn, Clutch Pedal Position Learn, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Auto-Door Lock, etc.

    • Oil Reset, to reset the oil service lamp for the engine oil life system; EPB Reset, to reset the brake pad after replacing the brake pad.
    • ABS Bleeding, to perform various bi-directional tests of Anti-lock Braking System;
    • Injector Coding, to write the new code to the ECU after replacement of injector.
    • Suspension Calibration, to adjust the height of the body; SAS Calibration, to calibrate the steering angle after replacement.
    • Anti-theft Matching, to disable the lost key and add the new key’s data for security.
    • BMS Reset, to perform a resetting operation on the monitoring unit of the vehicle battery.
    • Tire Pressure Reset, to look up the tire sensor IDs, reset tire pressure, and turn off the tire pressure MIL.
    • DPF Reset, to retrieve/erase DPF-related codes, and reset the DPF light.
    • Throttle Matching, to make initial settings to throttle actuators.
    • Gearbox Matching, to achieve a more comfortable and ideal shift quality.
    • WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, Cylinder, Trans Adaption, Airbag Reset, etc., and are still growing.

    10+ Highly Advanced Features

    • Bi-Directional Control (Active Test)

    Accurately figure out whether a specific system, component, or a subsystem in vehicles goes well and locate the problem by interactively operating and testing the vehicle’s related actuators; Compatible with most vehicle models on the market.

    • Modifications

    To improve car performance and enhance your experience as a driver or owner, you can change or add the functions by changing or adding certain modules that haven’t already in your vehicle, such as adding a satellite navigation system, courtesy lamps, car phone, parking sensors, atmosphere lights, etc.;Compatible with Volkswagen, Audi, BMW, etc.

    • Guided Functions

    Come with the on-screen instructions to guide you on how to complete some complicated functions step by step; Compatible with Volkswagen, Audi, Skoda, Seat, etc.

    • Personalization

    Customize your car as you want. Help you make full use of the hidden functions and disable the annoying features; Available for BMW, Porsche, Toyota, Nissan, Peugeot, Citroen, Fiat, etc.

    Please be Noted Here

    Autoauth and FCA SG W licenses are not supported. For Chrysler cars from 2018 and beyond have safety gateways, a Csryler 12 + 8 connector need to be added to perform AutoAuth Access function.

    Autel Ultral vs. MS909 vs. Ultra Lite


    Hardware Item Ultra Lite MS909 Maxisys Ultra
    RAM 256G 128G 256G
    ROM 4G 4G 4G
    Battery 18000mAh 15000mAh 18000mAh
    System Android 10.0 Android 10.0 Android 10.0
    Screen 12.9 inches 9.7 inches 12.9 inches
    Camera 16M+16M 16M+16M 16M+16M
    Connection VCI VCI VCMI(5-in-1 device)
    Software Car Coverage 1996+ European, America, Asian passenger,light duty, medium duty vehicles 1996+ European, America, Asian passenger, light duty, medium duty vehicles 1996+ European, America, Asian passenger, light duty, medium duty vehicles
    Diagnosis Full system diagnose, read & clear codes, live data, activation test Full system diagnose, read & clear codes, live data, activation test Full system diagnose, read & clear codes, live data, activation test
    Maintenance 36 36 36
    Bi-directional Control
    Guidance
    Coding
    Online Programming
    Cloud Service Remote diagnose, report manage, repair cases Remote diagnose, report manage, repair cases Remote diagnose, report manage, repair cases
    Topological Graph
    ADAS ×
    Multimeter × ×
    Oscilloscope × ×
    Signal Generator × ×

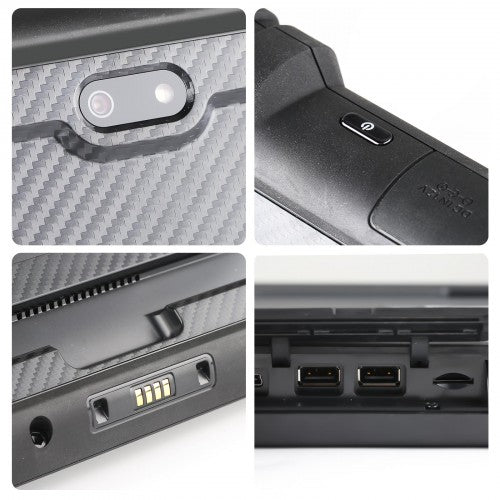

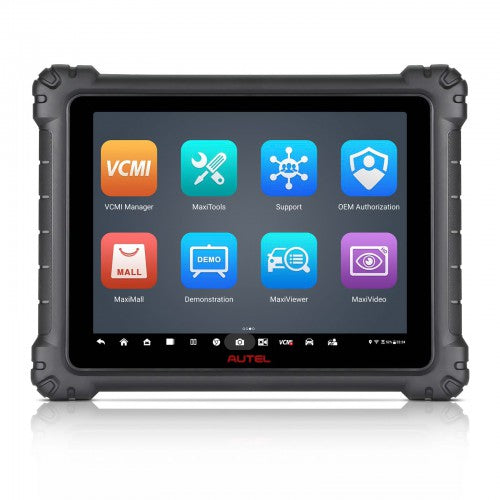

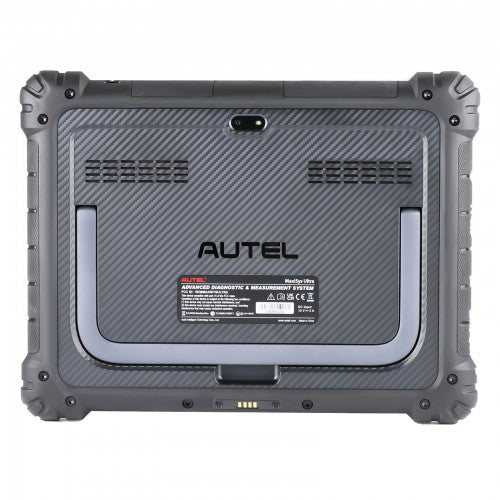

    Autel Maxisys Ultra Specification:

    Operating System Android 7.0
    Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
    Memory 4GB RAM & 256GB On-board Memory
    Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
    Connectivity

    WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

    BT v.2.1 + EDR

    GPS

    USB 2.0 (TWO USB HOST Type A, ONE USB mini device)

    HDMI 2.0

    SD Card (Support up to 256GB)
    Camera

    Rear: 16 Megapixel, Autofocus with Flashlight

    Front: 5.0 Megapixel
    Sensors

    Gravity Accelerometer, Ambient Light Sensor (ALS)

    Audio Input/Output

    Microphone

    Dual Speakers

    3-Band 3.5 mm stereo/standard headset jac

    Power and Battery

    15000mAH 3.8V lithium-polymer battery

    Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
    Input Voltage 12V/3A Adapter
    Operating Temperature 0 to 50°C (32 to 122°F)
    Storage Temperature -20 to 60°C (-4 to 140°F)
    Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
    Weight 1.66kg (3.66 lb.)
    Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)


    MaxiSYS Ultra Package List:

    1pc x Main Unit
    1pc x MaxiFlash VCMI
    1pc x Main Cable V2.0
    1pc x USB 2.0 Cable V2
    1pc x AC/DC Adapter(12V)
    1pc x Cigarette Lighter
    2pcs x Light Fuse 6x30mm
    1pc x Clipper Cable
    4pcs x Scope Test Lead
    2pcs x Multimeter Test Lead
    2pcs Secondary Ignition Pickup
    2pcs Attenuator 20:1
    Breakout Lead 4x6 PCS
    Multimeter Probe 1x2 PCS
    Flexible Back-pinning Probe 2x2 PCS
    Back-pinning Probe - Red / Green / Blue / Yellow / Black 1x5 PCS
    Back-pinning Probe Screw 2 PCS
    Back-pinning Probe Replacement Needle 20 PCS
    Small Crocodile Clip 2x2 PCS
    Large Dolphin Clip 1x2 PCS
    1pc x Quick Reference Guide
    1pc x Packing List
    1pc x Soft Cloth
    Tool Box 177 x 102.5 x 23.5 mm
    Carrying Case 687 x 170 x 470 mm

    The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra,  MaxiSys Ultra ADAS,  MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI

    • Includes EVDiag Box, Adapters for BMW, Tesla, VW and Breakout Leads

    • Includes Carrying Case

    • Compatible with Ultra series products to perform Battery Pack diagnostics

    • State of Charge and State of Health analysis for true battery condition

    Who will be interested in the EV Diagnostics Upgrade Kit ?

    For customers who already bought MS909 or MaxiSys Ultra can just buy EV box to upgrade their device to MS909EV and MaxiSys Ultra EV.

    How to active EV box on MS909/ MaxiSys Ultra?

    To imput EV box SN on tablets portal directly to upgrade.

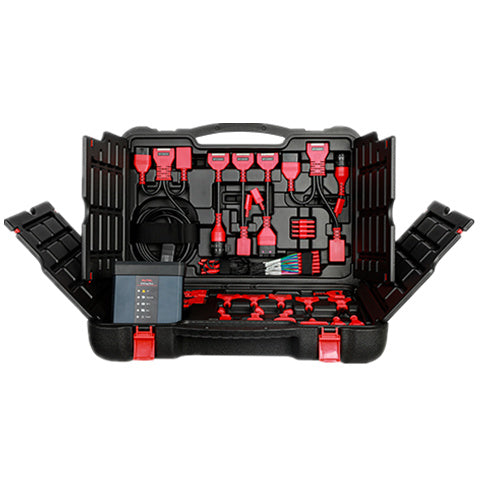

    EV Diagnostics Upgrade Kit Accessories

    EV Diagnostics Upgrade Kit
