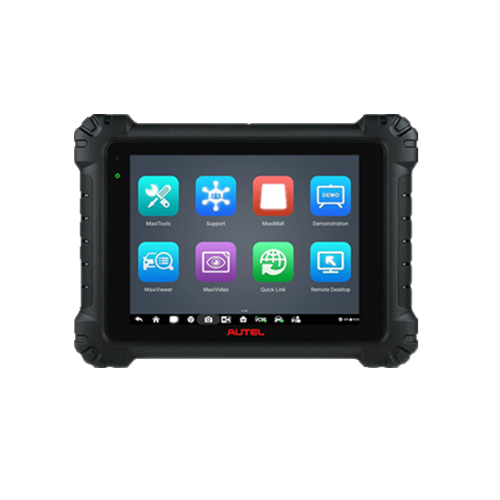

Autel MaxiSYS MS919 Diagnostic Tool with 5-in-1 VCMI, Top Diagnostics, 36+ Service Functions, Advanced ECU Programming & Coding Ship from US Local Distributor

Autel MaxiSYS MS919 Diagnostic Tool with 5-in-1 VCMI, Top Diagnostics, 36+ Service Functions, Advanced ECU Programming & Coding Ship from US Local Distributor

Availability: In stock

Product type: Auto Diagnostic Tool

Vendor: Autel

Regular price $3,499.00

Autel Maxisys MS919 Highlights:1.2022 Autel Scanner newly released version of AutelAutel Maxisys MS919 coveres all of the features that MK908P, MS Elite...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Autel Diagnostic Tools

Tags:

US Ship

Autel Maxisys MS919 Highlights:

1.2022 Autel Scanner newly released version of Autel
Autel Maxisys MS919 coveres all of the features that MK908P, MS Elite and MS909 have equipped. It’s a diagnostic tool especially for pro mechs, auto repair chains since it has worldwide coverage for 99% of vehicles. The updated MS919 has emerged all of the features such as 5-in-1 VCMI, OEM Technical Service Bulletin, 10+ advanced functions, technical support.

2. Advanced Diagnostic & 36 Special Functions
Autel Maxisys MS919 as the most ambitious scanner developed by Autel, the MS919 is designed to diversify the knowledge pool of mechs, simplify the diagnostic process and bring out the potential of technicians. The 36+ special functions can be the perfect solution for most of issues

3. 5-in-1 VCMI, Same as Autel Ultra

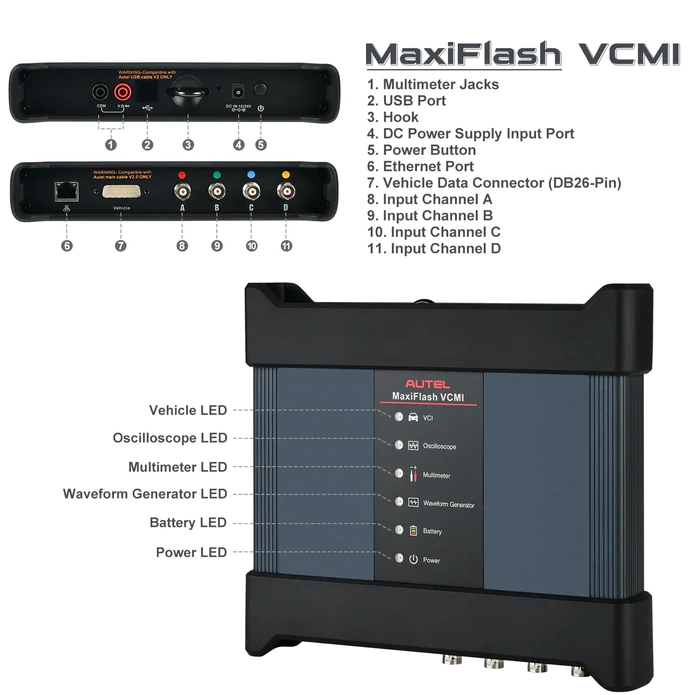

The MaxiFlash VCMI is a small but complete and reliable lower computer with powerful hardware extensions such as oscilloscope, waveform generator, multimeter, and CAN BUS tester. It also supports multiple transmission protocols simultaneously such as KPW, CAN, CAN-FD, DoIP, etc. Only two of Autel tablets support VCMI and the MS919 can save you 1000 bucks comparing with MS Ultra!

3.Support ECU Programming and Coding
Peaking of the ECU coding & programming, the first thing come to mind maybe is: These only can be done by pros. But now, you’re the pro! Thanks to the compatibility with many major protocols such as KPW, CAN, CAN-FD, DoIP, etc. Speaking of the CAN-FD, its transmission speed is 14 times faster than CAN. （Note: The CAN-FD only support post-2019 GM models）MS919 allows you to easily access deep into the ECU to find and solve problems.

4.Compatible with MS919 D-PDU, RP1210, J2534
To help you cope with more models that support different interface standards, we have pre-emptively followed in the footsteps of the times and have been compatible with D-PDU, J2534 (SAE J2534-1 & J2534-2), and RP1210 to help you conduct diagnostic and programming for passenger cars and commercial vehicles. The MS919 not only supports the original software of Volvo and Land Rover, but also supports Volkswagen and Mercedes-Benz, and other 20 more VC vehicle models.

5.Quality and After-Sales Guarantee
The Autel MaxiSys Ultra scanner is 100% Original Autel and we ship it from Ship from US Local Distributor,fast and no tax and it comes with 12-month warranty, 1-year free update(after 1 year free update,which cost US$1022.00 per year,if do not update it it will not affect the use of previous functions), lifetime professional tech support.

What is Autel MaxiSYS MS919?

The 2022 Autel Scanner newly released version of Autel MaxiSys MS919 is a more cost-effective tablet scanner which has covered all of the features that MK908P, MS Elite and MS909 have equipped. It’s a diagnostic tool especially for pro mechs, auto repair chains since it has worldwide coverage for 99% of vehicles. The updated MS919 has emerged all of the features such as 5-in-1 VCMI, OEM Technical Service Bulletin, 10+ advanced functions, technical support.

Updates in 2022 Jan:

GM: Adds ECU Information, Read Codes, Erase Codes, Live Data, Active Test, and Special Function for 33 models in 2022 including Cadillac CT4, Buick Envision, and Chevrolet Blazer. Adds 5 hot special functions: Automatic Start/Stop, Transport Mode, A/C, Rain/Light Sensor, and EGR.
Toyota: Adds basic functions for 41 models in 2021 (including Yaris, and 4Runner), and 9 models in 2022 (including Corolla, and Hilux). Adds 3 types of Service function: ACC, A/C, and HV Battery.
VW: Adds diagnostic supports for models including ID.6 X 2021, ID.6 Crozz 2021, Audi Q4 e-tron 2022, and CP - Tarek 2021.Updates basic functions, and special functions (including Oil Reset, EPB, and Odometer), supporting models up to 2022. Adds 258 hot guided functions including Battery, Headlight Washer, and Transport Mode. Adds Topology for makes including VW, Audi, Skoda, and Seat.
JLR: Adds basic functions for 2022 PHEV models (Jaguar XE and Jaguar XF) and 2021 onward PHEV models (Discovery Sport and New Range Rover Evoque). Adds 35 special functions including Power Supply Service Mode Diagnostic, Purge Valve Self Test, Fuel System Leak Check (DMTL), and Fuel Tank - Smoke Test for 2017 onward models.
Nissan: Adds basic functions for 23 models in 2021 (including Kicks, Versa, Infiniti) and 10 models in 2022 (including Armada, Pathfinder, and Frontier). Heating Oxygen Sensor (HO2S) 1. Adds hot special function: HV Battery. Supports functions including Li-ion Battery Capacity Balancing, Clear Battery Gradual Capacity Loss, and Clear Batt Charge/Discharge Information Data.
BMW: Optimizes basic functions, supporting models up to July 2021. Adds 7 hot special functions: Transport Mode, HV Battery, ACC, A/C, Rain/Light Sensor, EGR, and FRM Reset. Adds basic functions and special functions for models with 4 types of chassis including G22 and G82. Supports ECU programming version for models up to March 2021 with F/G chassis.

The Autel MaxiSYS MS919 main function

ECU Coding and Programming

The MS919 allows you to pass through the blocks to access the OE ECU data package and tune the ECU module as you want. Program rewriting, ECU upgrading & downgrading, ECU module matching & replacement, etc. As for the commonly seen interface standard, D-PDU, J2534, and RP1210, the MS919 also supports.

e.g.

Online programming for Mercedes-Benz (204, 212, 207, 463), the online SCN for (222, 212, 204, 205) and ECU coding and programming for most of models .

Online & Offline ECU Coding

It is a key to open the gate to a brand new world. The MS919 empowers you to tune the ignition time, oil injector, air intake, software-controlled driving system. Anyway, it’s time to unlock the handcuffs and stop being bound with the OE settings.

The online coding, flashing hidden, modification for Volkswagen and Audi.
The personalization for Toyota, Nissan, Peugeot, Citroën

Autel MaxiSys MS919 ECU Program Funcition

5-in-1 VCMI & advanced Diagnostic

VCMI

Thanks to MaxiSys Flash mighty compatibility with D-PDU, J2534 and RP1210 interface standards, so it can conduct more diagnosis and programming for passenger cars and CVs comparing with other best-selling tablet scanners in the US market. It supports the OE software of Volvo, Land Rover, VW, Mercedes, and over 20 CV models.

Let alone the diagnostic protocols, the MaxiSys also supports extensive hardware extension such as oscilloscope, waveform generator, multimeter, and CAN BUS tester. With the help of those practical little tools, the Autel tablet can help you easily track down the problems and sever you the best.

The following are Display Topology supported brands: BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.

The newly added display topology makes the information display more intuitive and systematic. You can zoom in and out to view the communication structure between modules. The MS919 can directly display fault codes and access the system to perform functions.

10 Advanced Features for Pros

Guided Function for VAG: For VAG vehicles, you will need to select a channel and enter a login password when performing diagnostics. MS919 will save you the trouble of looking up information and will automatically enter it directly

Flash Hidden Functions: Helps you to activate some of the vehicle's hidden functions, such as automatic mirror folding, permanent shutdown of auto start/stop and one-touch window, etc.

IMMO: The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed.

Retrofitting & Modification: It is a function that helps you to modify the hardware and flash the software. For example, the vehicle is not equipped with power rear view mirrors in the original factory, so the automatic mirror folding function is not possible. After hardware modification--installing the electric rear view mirror, and flash the control module, you can successfully perform the function.

Active Test: the best way to target the problems before taking off the control units or components. The Autel MS919 would be a commander instead of being an order receiver of ECU. Here are the modules you may control with the help of MS919: Power Windows, Heated Rear Window, Xenon Headlights, Wipers, Fuel Burning Heater, Transfer Box, Seat Memory, Electronic Throttle, etc.

Oil Reset: Reset the oil life system and turn off the oil light after replacing the oil or oil filter to start a new cycle.

EPB Reset: Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.

SAS Calibration Reset: Calibrate the steering angle after replacing the steering angle position sensor and the mechanical parts of the steering system, etc. Stores the current steering wheel position as the straight-ahead position in the steering angle sensor and clear fault memory.

DPF Regeneration: Perform the regeneration procedure as know as the DPF cleaning operation to clear particulate matter from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance.

Suspension: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.

ABS Bleeding: Bleed the air of a brake system to restore ABS brake sensitivity.

BMS Service: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information, and prevent the related control module from detecting false information.

TPMS Reset: Quickly look up the tire sensor IDs from the vehicle’s ECU, and perform TPMS replacement and sensor test.

Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.

This Autel scan tool comes with 36+ service functions and can be updated constantly with more functions and wider vehicle coverage to meet all your needs for various scheduled repairs or maintenance. Oil Reset, EPB, TPMS, BMS, ABS Bleed, DPF Regeneration, IMMO Keys, Injector Coding, SAS Calibration, Throttle Adaption, Gearbox Matching, SRS, etc.

3 Mainstream Diagnostic Protocol Supported

D-PDU, J2534 and RP1210 which is compatible with CAN-FD, DoIP on most of the vehicles in the world. With constant updates, the MS919 is capable of covering the latest published vehicle models.

Dual Wireless Connection & Scan VIN

Wi-Fi and Bluetooth make up a dual wireless connection for you. In either case, the connection sure the effectiveness and stability of information transmission. The Scan VIN allows you to access the vehicle info in 3 different ways: Scanning the license plate, VIN code, and barcode!

Autel Ultra Vs Autel MS919 Vs Autel MS909 Vs Autel Elite

Autel Ultra	Autel MS919	Autel MS909	Autel Elite
Screen	12.9inch	9.7inch	9.7inch	9.7inch
Processor	2.3GHz+1.7GHz OCTA-CORE	2.3GHz+1.7GHz OCTA-CORE	2.3GHz+1.7GHz OCTA-CORE	1.8GHz QUAD-CORE
Memory & RAM	256GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	128GB SSD/ 4GB RAM	64GB SSD/ 2GB RAM
Battery	18,000mAh	15,000mAh	15,000mAh	15,400mAh
Camera	Front: 5MP, Rear: 16MP	Front: 5MP, Rear: 16MP	Front: 5MP, Rear: 16MP	Front: 2MP, Rear: 8MP
5-in-1 VCMI	✓	✓	×	×

Support D-PDU/ RP1210, DoIP/ CAN FD	✓	✓	✓	×

IP Restriction	×	✓	✓	✓

Autel MaxiSYS MS919 Specifications

Operating System

Android 10.0

Processor

Qualcomm 660 Octa-coreProcessor (2.2GHzQuad-coreA73 +1.8GHzQuad-core A53)

Memory

4GB RAM & 128GB On-board Memory

Display

9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen

Connectivity

Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
BT V5.0 + BR/EDR
GPS
USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
HDMI 2.0
SD Card (Support up to 256GB)

Camera (rear)

Rear: 16 Megapixel, Autofocus with Flashlight
Front: 16 Megapixel

Sensors

Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output

Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack

Power and Battery

15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage

12V/1.3A Adapter

Operating Temperature

0 to 50°C (32 to 122°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Dimensions (WxHxD)

304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight

1.66kg (3.66lb.)

Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
