2. Accurate diagnosing results - a tool users can trust
3. Pre-selection process offers faster activation and diagnostics
4. Easy-to-use with intuitive navigation and step-by-step on-screen
5. Read / clear codes of TPM system and resets malfunction indicator light
6. Reads sensor ID from vehicle ECU
7. Work with ALL known magnetic

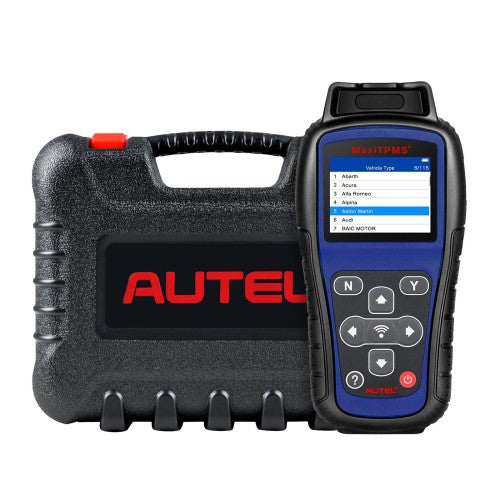

MaxiTPMS TS501 Description:
The MaxiTPMS TS501 TPMS diagnostic and service tool is specially developed to activate any known OEM / Universal TPMS sensor, and reprogram the vehicle's ECU.
This will in turn put off the warning symbol on the dash. This self powered ergonomic tool allows you quick and easy access to the faulty TPMS sensors fitted to the vehicle.
This also in turn leads to customer satisfaction and increase in your profit. Tyre shops always run the risk of sensor damage during tire changes and being able to solve this problem by replacing the damaged or defective TPMS while the customer waits.
These are day to day problems tire fitment centers face.
Autel MaxiTPMS TS501 Features and Functions:
1. Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
Autel MaxiTPMS TS501 Specification:
Display: TFT color display (320 x 240 dpi)
Autel MaxiTPMS TS501 Package list:
1pc x TPMS TS501 main unit
1pc x USB Cable
1pc x SD CARD
1pc x Charger
1pc x Magnet
1pc x OBDII Cable
1pc x CD
1pc x User's Manual
Reasons to Get Autel MaxiTPMS TS501:
1.Free Update Online Lifetime on Autel Official Website2. Accurate diagnosing results - a tool users can trust
3. Pre-selection process offers faster activation and diagnostics
4. Easy-to-use with intuitive navigation and step-by-step on-screen
5. Read / clear codes of TPM system and resets malfunction indicator light
6. Reads sensor ID from vehicle ECU
7. Work with ALL known magnetic
MaxiTPMS TS501 Description:
The MaxiTPMS TS501 TPMS diagnostic and service tool is specially developed to activate any known OEM / Universal TPMS sensor, and reprogram the vehicle's ECU.
This will in turn put off the warning symbol on the dash. This self powered ergonomic tool allows you quick and easy access to the faulty TPMS sensors fitted to the vehicle.
This also in turn leads to customer satisfaction and increase in your profit. Tyre shops always run the risk of sensor damage during tire changes and being able to solve this problem by replacing the damaged or defective TPMS while the customer waits.
These are day to day problems tire fitment centers face.
Autel MaxiTPMS TS501 Features and Functions:
1. Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals
2. Receives both 315MHz and 433MHz signals
3. Reads data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information
4. Reads / writes sensor ID from vehicle ECU
5. Reads / clears codes of TPMS system and reset malfunction indicator light
6. Checks Remote Keyless Entry (Key FOB) for transmissions
7. Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process
8. Pre-selection process offers faster activation and diagnostics
9. Programs vehicle ECU to learn sensor IDs and positions
10. Provides visual and audible responses to confirm sensors are working properly
11. On-screen code definitions
12. Proper LF signal to prevent being fooled by other RF signals
13. Ergonomic design features strong housing and protective rubber boot
13. Ergonomic design features strong housing and protective rubber boot
14. Built-in rechargeable Li-polymer battery
15. Automatic power-off to preserve battery life
16. Multilingual support: English, French, and Spanish, etc.
How to change language?
When you got the device default is English, then please contact us and provide the device SN, then we will authorize the language you need, then please update your device, then you can set the langugae in setting.
Autel MaxiTPMS TS501 Information Excerpts:
1. Battery Charging
The TPMS tool has a 3.7V built-in lithium-ion polymer rechargeable battery. There are two means of battery charging:
a. To charge battery by power adapter.
1) Locate the power port of the device.
2) Connect the device and the power source with the adapter.
b. To charge battery by USB cable
1) Locate the USB port of the device.
2) Connect the device and the computer with the USB cable.
For optimum performance, always keep your tool sufficiently charged. It is recommended that you charge the tool for over 2 hours before the first use.
NOTE: Only use the power adapter or USB cable that is included in our pack to charge this tool. The use of unapproved power supplies may damage your tool and void the tool warranty.
2. Power Up by DLC
The tool can also be powered via the vehicle Data Link Connector (DLC). Just follow the steps below to turn on the TPMS tool:
1) Connect the OBDII Cable to the TPMS tool.
2) Find DLC on vehicle.
A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBDII cable.
3) Plug OBDII cable to the vehicle's DLC.
4) Power up the TPMS tool by pressing the Power Button, and wait for the Main Menu to appear.
NOTE: OBDII connection does not support battery charging.
How to change language?
When you got the device default is English, then please contact us and provide the device SN, then we will authorize the language you need, then please update your device, then you can set the langugae in setting.
Autel MaxiTPMS TS501 Information Excerpts:
1. Battery Charging
The TPMS tool has a 3.7V built-in lithium-ion polymer rechargeable battery. There are two means of battery charging:
a. To charge battery by power adapter.
1) Locate the power port of the device.
2) Connect the device and the power source with the adapter.
b. To charge battery by USB cable
1) Locate the USB port of the device.
2) Connect the device and the computer with the USB cable.
For optimum performance, always keep your tool sufficiently charged. It is recommended that you charge the tool for over 2 hours before the first use.
NOTE: Only use the power adapter or USB cable that is included in our pack to charge this tool. The use of unapproved power supplies may damage your tool and void the tool warranty.
2. Power Up by DLC
The tool can also be powered via the vehicle Data Link Connector (DLC). Just follow the steps below to turn on the TPMS tool:
1) Connect the OBDII Cable to the TPMS tool.
2) Find DLC on vehicle.
A plastic DLC cover may be found for some vehicles and you need to remove it before plugging the OBDII cable.
3) Plug OBDII cable to the vehicle's DLC.
4) Power up the TPMS tool by pressing the Power Button, and wait for the Main Menu to appear.
NOTE: OBDII connection does not support battery charging.
Autel MaxiTPMS TS501 Specification:
Display: TFT color display (320 x 240 dpi)
Power: 3.7V Li-polymer battery
Operating Temperature: 0 to 50°C (32 to 122 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
Length\Width\Height: 202.2mm(7.96")\106.7mm(4.20")\37.7mm(1.48")
Main unit weight: 0.4kg (0.88lb)
Autel MaxiTPMS TS501 Package list:
1pc x TPMS TS501 main unit
1pc x USB Cable
1pc x SD CARD
1pc x Charger
1pc x Magnet
1pc x OBDII Cable
1pc x CD
1pc x User's Manual
